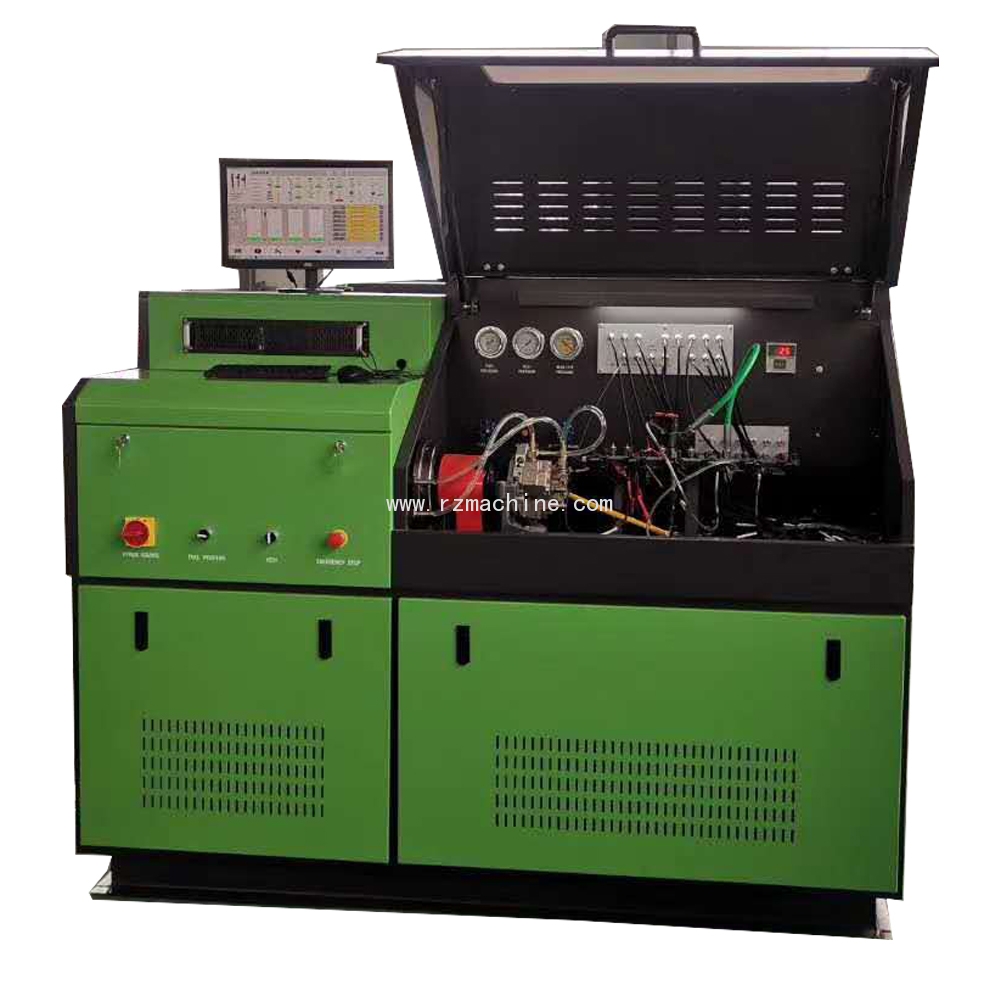

Common Rail Injector Common Rail Pump

1. Test brands：BOSCH、SIEMENS、DELPHI、DENSO. 1.Test brands：BOSCH、SIEMENS、DELPHI、DENSO.

2. Test 4 pieces of injectors at a time.

(6 is also available---optional function) 2.Test the double plunger HP0 pump of

DENSO—(optional function)

3. Test the pre-injection of the high-pressure common rail injector. 3. Test the sealing of common rail pump.

4.Test the max. oil quantity of high-pressure common rail injector 4. Test the internal pressure of common rail pump.

5. Test the cranking oil quantity of high-pressure common rail injector.  5. Test the proportional electromagnetic valve of

common rail pump.

6. Test the backflow oil quantity of high-pressure common rail injector. 6. Test the input pressure of common rail pump.

7. Test the average oil quantity of high-pressure common rail injector. 7. Test the flux of common rail pump.

8. Test the high-pressure common rail injector's injection state and oil quantity measurement. 8. measure the rail pressure in real time.

9. Data can be searched, printed and made into database. Data can be searched, printed and made database.

>>>TECHNICAL PARAMETER

Injection testing frequency ：50～3000 rpm

Pulse width： 0.1～200 ms

Continuous injection times： 0～1000

Fuel temperature ：40±2℃

Supply oil quantity of common rail injector： 0～200cc/min 0.5%

Rail high pressure ：0～2000 bar

Test oil filtered precision ：5μ

Input power ：380V/50hz/3phase or

220V/60hz/3phase

Rotation speed：0~4000RPM

Oil tank capacity： 60L

Flywheel inertia’s moment： 0.8KG.M2

Center height： 125MM

Output power ：7.5KW(11kw,15kw,18.5kw as request)
